| 브랜드 이름: | ANS |
| 모델 번호: | EVA11B |
| MOQ: | 1 |
| 포장에 대한 세부 사항: | 15.7*15*3.15(in) |
| 지불 조건: | L/C, T/T, Western Union |

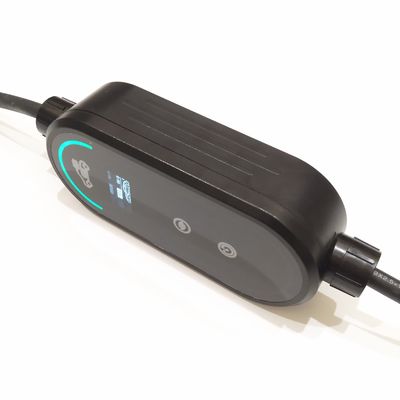

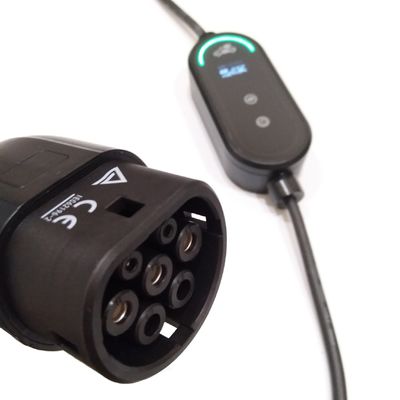

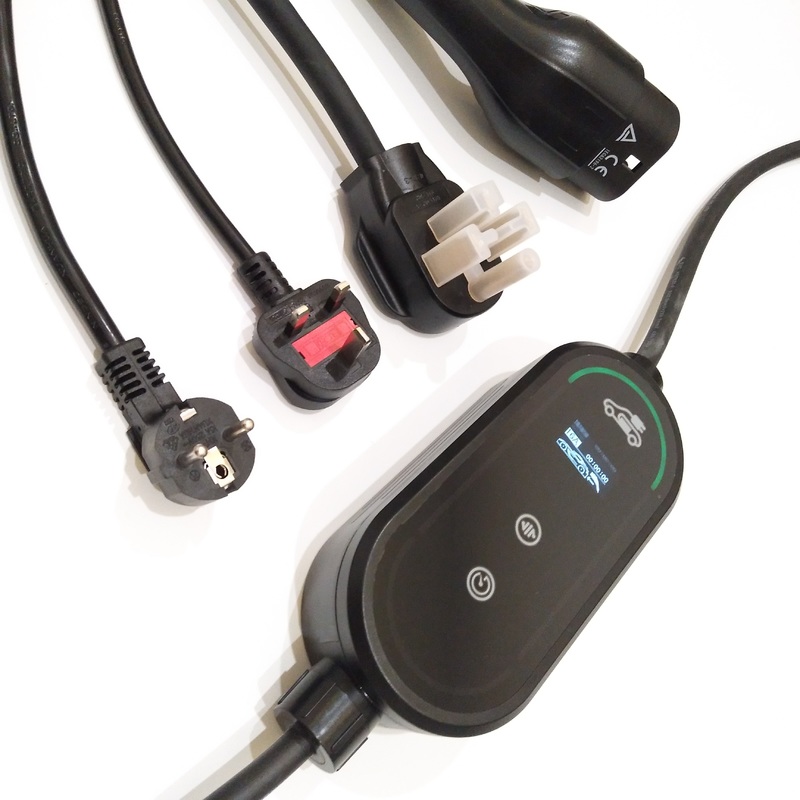

3 Phase 400V 11kW Portable EV Car Charger IP67 with CE Certification
Product Description
Unlock professional-grade, high-speed charging with the EVA11B 11kW three-phase portable charger. Engineered for efficiency and top-tier safety, its advantages are clear:
Adjustable Current: Optimize charging on robust three-phase power supplies (400V), delivering maximum speed where supported while ensuring compatibility.
Delay Charging Setting: Manage energy consumption intelligently for high-power charging, leading to significant savings on operational costs.
LED Light & Touch Key: Provides clear real-time data and control for a complex high-power charging process, ensuring user-friendliness.
Built-in RCD Type B: Non-negotiable safety for high-capacity charging, offering critical protection against all types of residual currents.
This charger is the ultimate portable solution for high-performance EVs and commercial applications.
Specificaiton
| Product Model EVA11B | |
| Input/Output voltage | AC 400V |
| Input frequency | 50/60Hz |
| Max.output power | 3-Phase up to 11kW(@400V 16A) |
| Max.output current | 16A for 3- Phase |
| Standard | IEC 62752:2016/COR1:2019 |
| Protection | |
| Certificate | CE |
| Over voltage protection | Yes |
| Under voltage protection | Yes |
| Over load protection | Yes |
| Short circuit protection | Yes |
| Leakage protection | Yes |
| Over - temp protection | Yes |
| Lightning protection | Yes |
| Function and Accessory | |
| LED indicators | Yes |
| OLED screen | Yes |
| RCD | Type B |
| Current adjustment | Yes |
| Delay charging adjustment | Yes |
| Ethernet/WIFI/4G/Bluetooth | No |
| Working environment | |
| Protection degree | IP 67 |
| Operation temperature | -30℃ - 60℃ |
| Relative humidity | ≤95%RH |
| Operating elevation limit | ≤2000m |
| Cooling | Natural air cooling |
| Standby power consumption | <0.5W |
| Mechanical parameters | |
| Charging cable | 5m (Standard configuration) |
| Control box | H×W×D = 200mm×90mm×52mm |
| Weight | ≤3.2kg |
| Colour&Material | Black;Tempered Glass,PC |
Features
LED Display:
1. Charging Temperature
2. Charging Current
3. Charging Voltage
4. Energy Charged in KW/h
5. Charged time.
6.Set Current
7. Charging speed in KW
LED Indicators
Control Box Function:
1. Leakage protection
2. Over-voltage or Low-voltage protection
3. Over-load protection
4. Lightning protection
5. Over-heat protection
6. Change current: 8A 10A 13A 16A
How to install
Step 1: Put the wall bracket in a proper position on the wall, mark theposition of the top two screw holes on the wall using a pencil.
Step 2: Put down the wall bracket and drill the holes just marked. insertthe expansion plugs and fix the wall bracket to the wall usingself-tapping
screws.
Step 3: First insert the device into the upper mounting hole of the wallbracket. Then into the round hole of the bottom bracket andfix it on the wall bracket using combination screws.
Installation cases
Packaging
Our Certification
Exhibition
Visits from Various Countries (looking forward to your arrival)
|
|
