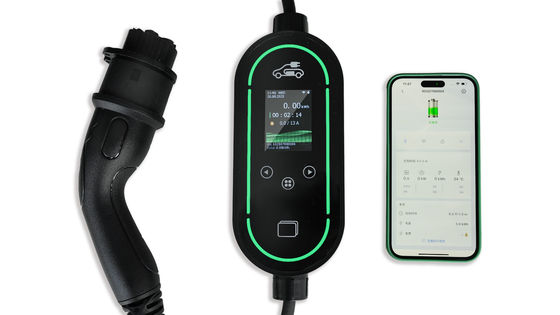

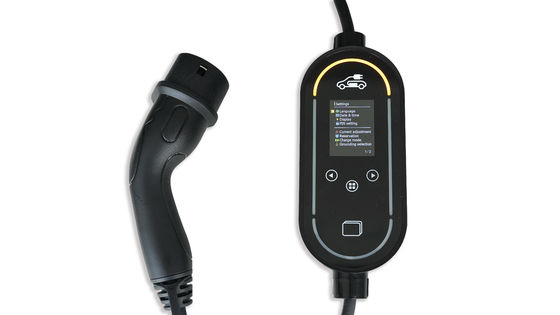

3 Phase 11kw Portable Home Ev Charger With CE Certification
Product Description
The EVB11B Home Fast Charging Station revolutionizes at-home EV charging by delivering professional-grade power in a compact, user-friendly design. Engineered specifically for residential use, this 11kW charging solution can fully recharge most electric vehicles overnight, with many models achieving complete charges in just 4-6 hours - up to three times faster than standard Level 1 chargers.
Featuring intelligent power management, the EVB11B automatically adjusts charging current from 6A to 16A, preventing circuit overload while optimizing charging speed for your home's electrical capacity. The sleek control box with IP67 rating ensures reliable outdoor performance, perfectly suited for driveway or garage installation. Its 5-meter charging cable provides ample reach, while the flame-retardant, UV-resistant housing maintains integrity through years of exposure.
Smart connectivity transforms your charging experience. Through intuitive mobile app control via WiFi/Bluetooth, homeowners can schedule charging sessions during off-peak hours for maximum cost savings, monitor real-time energy consumption, and receive charging completion alerts. The 2.4-inch LCD display clearly shows charging progress, voltage, power, and accumulated energy costs. Multiple security layers, including RFID authentication and password protection, ensure that only authorized users can access the charging functions. With comprehensive safety certifications and Type B RCD protection (AC 30mA+DC 6mA), the EVB11B provides enterprise-level safety for family use, making premium home EV charging accessible and worry-free.
Core Points:
3-phase 400V input, up to 11kW output power
Type B RCD with AC/DC leakage protection
Current adjustable from 6A to 16A
IP67 rated for indoor/outdoor use
Specificaiton
| Product Model EVB011B | |
| Input/Output voltage | AC 400V |
| Input frequency | 50/60Hz |
| Max.output power | 3 - Phase up to 11kW(@400V 16A) |
| Max.output current | 16A for 3 - Phase |
| Standard | IEC 62752:2016/COR1:2019 |
| Certificate | CE,RoHS |
| Protection | |
| Over voltage protection | Yes |
| Under voltage protection | Yes |
| Over load protection | Yes |
| Short circuit protection | Yes |
| Leakage protection | Yes |
| Over - temp protection | Yes |
| Lightning protection | Yes |
| Function and Accessory | |
| LED indicators | Yes |
| Led screen | 2.4-inch |
| RCD | Type B((AC 30mA+DC 6mA) |
| Current adjustment | Yes |
| Relay adhesion detection | Yes |
| RFID manageable | Yes |
| WIFI/Bluetooth | Yes(WIFI 2.4GHz) |
| Working environment | |
| Protection degree | IP 67 |
| Operation temperature | -30℃ - 55℃ |
| Relative humidity | ≤95%RH |
| Operating elevation limit | ≤2000m |
| Cooling | Natural air cooling |
| Standby power consumption | <3W |
| Mechanical parameters | |
| Charging cable | 5m (Standard configuration) |
| Control box | H×W×D = 200mm×90mm×52mm |
| Weight | ≤3kg |
| Colour | Black |
| Material | PC(Flame retardant, UV resistant) |
Control Box Function:
1. Leakage protection
2. Over-voltage or Low-voltage protection
3. Over-load protection
4. Lightning protection
5. Over-heat protection
6. Change current: 8A 10A 13A 16A
How to install
Step 1: Put the wall bracket in a proper position on the wall, mark theposition of the top two screw holes on the wall using a pencil.
Step 2: Put down the wall bracket and drill the holes just marked. insertthe expansion plugs and fix the wall bracket to the wall usingself-tapping
screws.
Step 3: First insert the device into the upper mounting hole of the wallbracket. Then into the round hole of the bottom bracket andfix it on the wall bracket using combination screws.
Installation cases
Packaging
Our Certification
Exhibition
Visits from Various Countries (looking forward to your arrival)
|
