| 브랜드 이름: | ANS |
| 모델 번호: | EVA03B |
| MOQ: | 1 |
| 포장에 대한 세부 사항: | 15.7*15*3.15(in) |
| 지불 조건: | L/C, T/T, Western Union |
3kw16A Portable Home Ev Charger With CE Certification and Led Display
Product Description

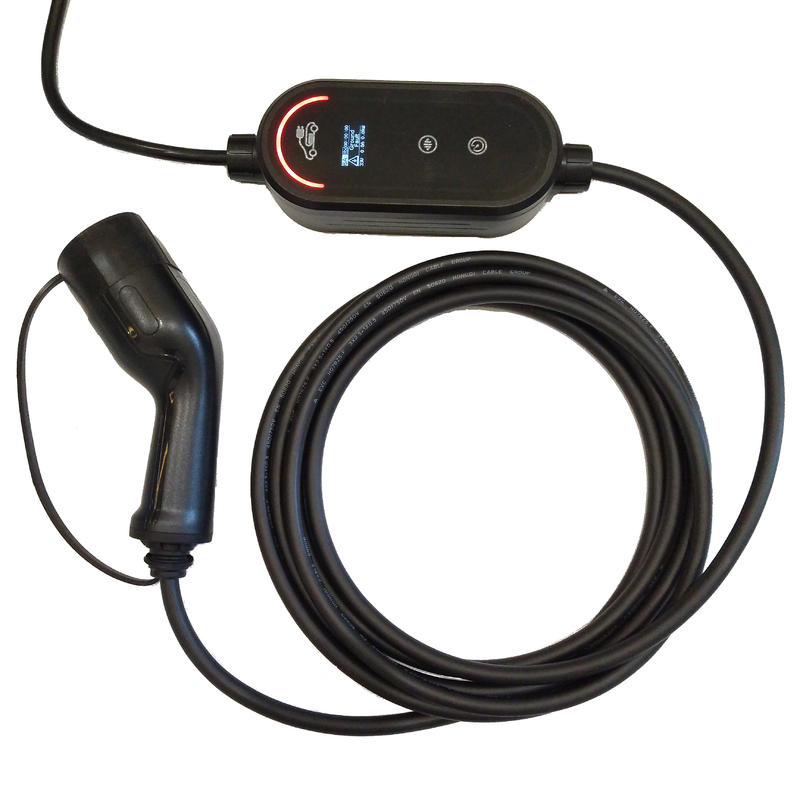

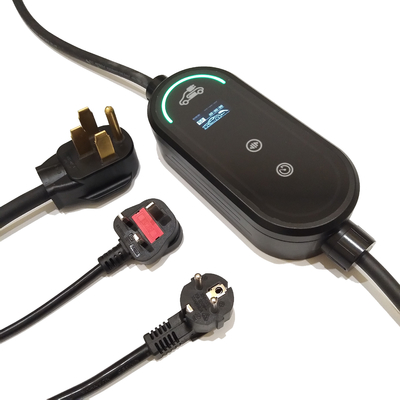

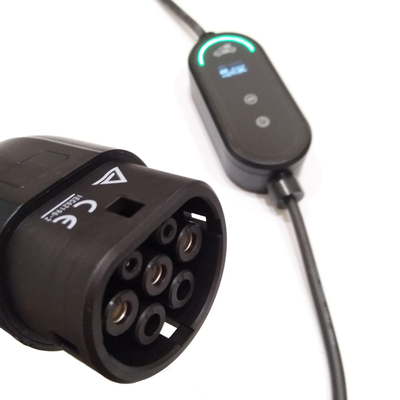

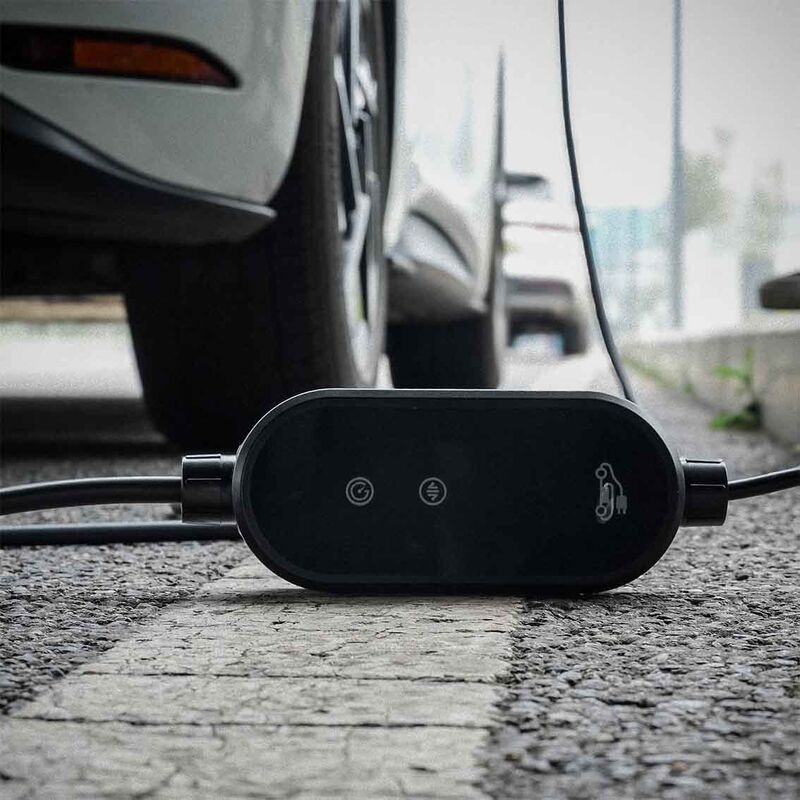

The EVA03B portable home ev charger is a high-performance portable EV charger designed for convenience and reliability. With a maximum output power of 3.7kW at 230V/16A, it supports both 110V and 230V AC inputs, making it compatible with most household and public charging points worldwide. Complying with the IEC 62752:2016/COR1:2019 standard and CE certified, this charger ensures safety and efficiency. It features multiple protections including over-voltage, under-voltage, overload, short circuit, leakage, over-temperature, and lightning protection. The sleek design includes a 5-meter charging cable, an OLED screen for real-time monitoring, and LED indicators for easy operation. Weighing only 2.1kg and built with durable materials, the EVA03B is perfect for on-the-go electric vehicle owners.
Key Advantage
Adjustable current
Delay charging setting
LED Light and Touch Key
Built-in RCD type B
Specificaiton
| Product Model EVA03B | |
| Input/Output voltage | AC 110V/230V |
| Input frequency | 50/60Hz |
| Max.output power | 1 - Phase up to 3.7kW(@230V 16A) |
| Max.output current | 16A for 1 - Phase |
| Standard | IEC 62752:2016/COR1:2019 |
| Protection | |
| Certificate | CE |
| Over voltage protection | Yes |
| Under voltage protection | Yes |
| Over load protection | Yes |
| Short circuit protection | Yes |
| Leakage protection | Yes |
| Over - temp protection | Yes |
| Lightning protection | Yes |
| Function and Accessory | |
| LED indicators | Yes |
| OLED screen | Yes |
| RCD | Type B |
| Current adjustment | Yes |
| Delay charging adjustment | Yes |
| Ethernet/WIFI/4G/Bluetooth | No |
| Working environment | |
| Protection degree | IP 67 |
| Operation temperature | -30℃ - 60℃ |
| Relative humidity | ≤95%RH |
| Operating elevation limit | ≤2000m |
| Cooling | Natural air cooling |
| Standby power consumption | <0.5W |
| Mechanical parameters | |
| Charging cable | 5m (Standard configuration) |
| Control box | H×W×D = 200mm×90mm×52mm |
| Weight | ≤2.1kg |
| Colour&Material | Black;Tempered Glass,PC |
Features

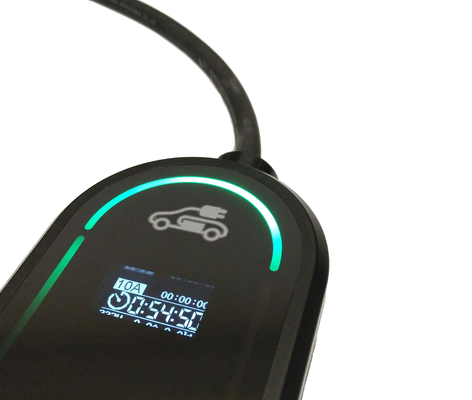

LED Display:
1. Charging Temperature
2. Charging Current
3. Charging Voltage
4. Energy Charged in KW/h
5. Charged time.
6.Set Current
7. Charging speed in KW
LED Indicators
Control Box Function:
1. Leakage protection
2. Over-voltage or Low-voltage protection
3. Over-load protection
4. Lightning protection
5. Over-heat protection
6. Change current: 8A 10A 13A 16A
Packaging
Our Certification
Exhibition
Visits from Various Countries (looking forward to your arrival)
|
|
