| 브랜드 이름: | ANS |
| 모델 번호: | EVA03B |
| MOQ: | 1 |
| 포장에 대한 세부 사항: | 15.7*15*3.15(in) |
| 지불 조건: | L/C, T/T, Western Union |

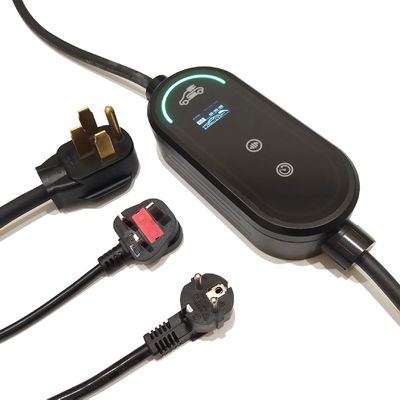

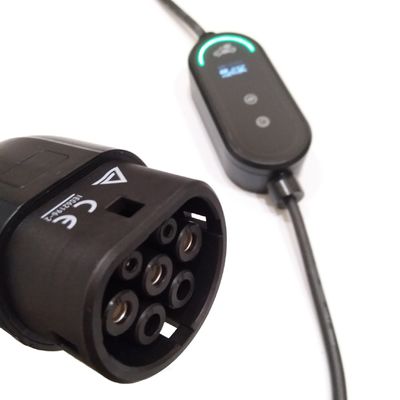

IP67 3kw 1-Phase Portable Home Ev Charger AC110V/230V
Product Description
Safety is a top priority with the EVA03B portable EV charger. It integrates seven key protection mechanisms: over-voltage, under-voltage, overload, short circuit, leakage, over-temperature, and lightning protection. The built-in Type B RCD offers enhanced electrical safety, preventing electric shock hazards. With an IP87 rating, it operates reliably in harsh environments, from -30°C to 60°C, and up to 95% humidity. Its standby power consumption is below 0.5W, promoting energy efficiency. Whether used in rain or shine, the EVA03B delivers peace of mind for every EV owner.
Key Advantage
Adjustable current
Delay charging setting
LED Light and Touch Key
Built-in RCD type B
Specificaiton
| Product Model EVA03B | |
| Input/Output voltage | AC 110V/230V |
| Input frequency | 50/60Hz |
| Max.output power | 1 - Phase up to 3.7kW(@230V 16A) |
| Max.output current | 16A for 1 - Phase |
| Standard | IEC 62752:2016/COR1:2019 |
| Protection | |
| Certificate | CE |
| Over voltage protection | Yes |
| Under voltage protection | Yes |
| Over load protection | Yes |
| Short circuit protection | Yes |
| Leakage protection | Yes |
| Over - temp protection | Yes |
| Lightning protection | Yes |
| Function and Accessory | |
| LED indicators | Yes |
| OLED screen | Yes |
| RCD | Type B |
| Current adjustment | Yes |
| Delay charging adjustment | Yes |
| Ethernet/WIFI/4G/Bluetooth | No |
| Working environment | |
| Protection degree | IP 67 |
| Operation temperature | -30℃ - 60℃ |
| Relative humidity | ≤95%RH |
| Operating elevation limit | ≤2000m |
| Cooling | Natural air cooling |
| Standby power consumption | <0.5W |
| Mechanical parameters | |
| Charging cable | 5m (Standard configuration) |
| Control box | H×W×D = 200mm×90mm×52mm |
| Weight | ≤2.1kg |
| Colour&Material | Black;Tempered Glass,PC |
Features

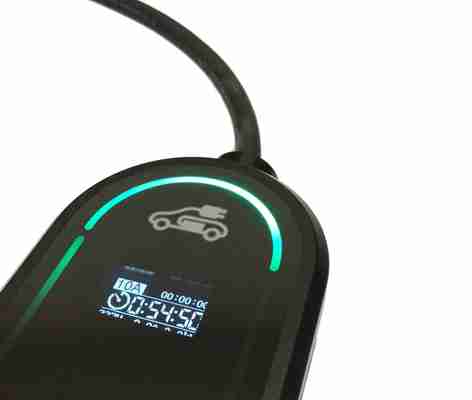

LED Display:
1. Charging Temperature
2. Charging Current
3. Charging Voltage
4. Energy Charged in KW/h
5. Charged time.
6.Set Current
7. Charging speed in KW
LED Indicators
Control Box Function:
1. Leakage protection
2. Over-voltage or Low-voltage protection
3. Over-load protection
4. Lightning protection
5. Over-heat protection
6. Change current: 8A 10A 13A 16A
Packaging
Our Certification
Exhibition
Visits from Various Countries (looking forward to your arrival)
|
|
