3kw Portable EV Charger Adjust Charging Current And Set Delayed Charging Sessions
Product Description

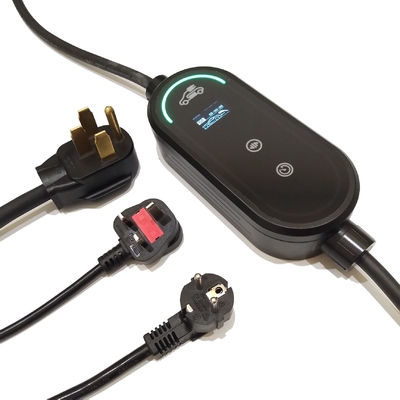

The EVA03B portable home ev Charger combines smart functionality with user-friendly design. It features an intuitive OLED screen that displays real-time charging data, and LED indicators for clear status updates. Users can adjust charging current and set delayed charging sessions, optimizing energy use during off-peak hours. Although it does not support Ethernet, WiFi, 4G, or Bluetooth, its plug-and-play design ensures simplicity and reliability. The compact control box (200x90x52mm) and lightweight structure (≤2.1kg) make it easy to carry and store. The black tempered glass and PC exterior offer both style and durability.
Key Advantage
Adjustable current
Delay charging setting
LED Light and Touch Key
Built-in RCD type B
Specificaiton
| Product Model EVA03B | |
| Input/Output voltage | AC 110V/230V |
| Input frequency | 50/60Hz |
| Max.output power | 1 - Phase up to 3.7kW(@230V 16A) |
| Max.output current | 16A for 1 - Phase |
| Standard | IEC 62752:2016/COR1:2019 |
| Protection | |
| Certificate | CE |
| Over voltage protection | Yes |
| Under voltage protection | Yes |
| Over load protection | Yes |
| Short circuit protection | Yes |
| Leakage protection | Yes |
| Over - temp protection | Yes |
| Lightning protection | Yes |
| Function and Accessory | |
| LED indicators | Yes |
| OLED screen | Yes |
| RCD | Type B |
| Current adjustment | Yes |
| Delay charging adjustment | Yes |
| Ethernet/WIFI/4G/Bluetooth | No |
| Working environment | |
| Protection degree | IP 67 |
| Operation temperature | -30℃ - 60℃ |
| Relative humidity | ≤95%RH |
| Operating elevation limit | ≤2000m |
| Cooling | Natural air cooling |
| Standby power consumption | <0.5W |
| Mechanical parameters | |
| Charging cable | 5m (Standard configuration) |
| Control box | H×W×D = 200mm×90mm×52mm |
| Weight | ≤2.1kg |
| Colour&Material | Black;Tempered Glass,PC |
Features

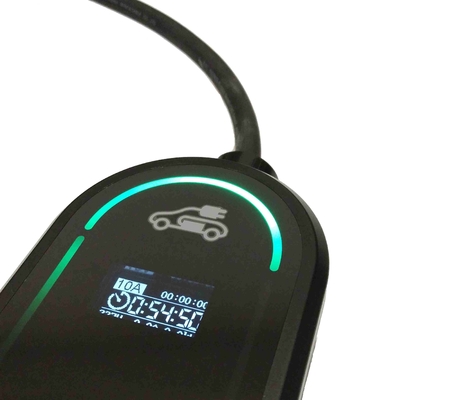

LED Display:
1. Charging Temperature
2. Charging Current
3. Charging Voltage
4. Energy Charged in KW/h
5. Charged time.
6.Set Current
7. Charging speed in KW
LED Indicators
Packaging
Our Certification
Exhibition
Visits from Various Countries (looking forward to your arrival)
|
|
