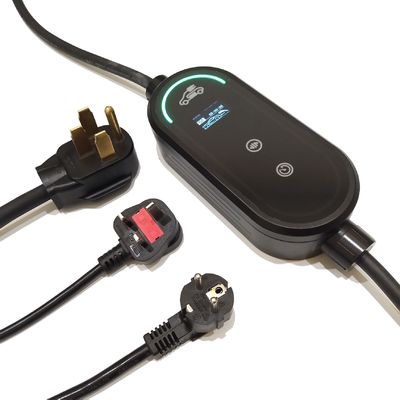

IP67 7kw CE Portable Home Ev Charger With Standard configuration 5m Charging cable
Product Description
The EVA07B is a high-power portable EV charger designed for efficient and flexible electric vehicle charging. With a maximum output of 7.4kW at 230V/32A, offering broad compatibility for users across different regions.
Complying with IEC 62752:2016/COR1:2019 and carrying CE certification, this charger guarantees safety and performance. It incorporates comprehensive protections including over-voltage, under-voltage, overload, short circuit, leakage, over-temperature, and lightning protection, along with a built-in Type B RCD for enhanced electrical safety.

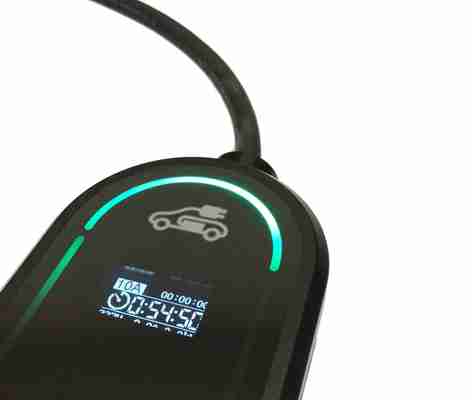

The intuitive OLED screen and LED indicators provide real-time charging status, while features like adjustable current and delay charging settings allow users to optimize energy usage. Despite its high power, the EVA07B remains highly portable—weighing just 2.9kg and featuring a compact control box (200x90x52mm). Its IP67 rating ensures reliable operation in diverse environments, from -30°C to 60°C and up to 95% humidity. The 5-meter cable adds convenience, making it an ideal charging solution for both daily use and travel.
Key Advantage
Adjustable current
Delay charging setting
LED Light and Touch Key
Built-in RCD type B
Specificaiton
| Product Model EVA07b | |
| Input/Output voltage | AC 110V/230V |
| Input frequency | 50/60Hz |
| Max.output power | 1 - Phase up to 7.4kW(@230V 32A) |
| Max.output current | 32A for 1 - Phase |
| Standard | IEC 62752:2016/COR1:2019 |
| Protection | |
| Certificate | CE |
| Over voltage protection | Yes |
| Under voltage protection | Yes |
| Over load protection | Yes |
| Short circuit protection | Yes |
| Leakage protection | Yes |
| Over - temp protection | Yes |
| Lightning protection | Yes |
| Function and Accessory | |
| LED indicators | Yes |
| OLED screen | Yes |
| RCD | Type B |
| Current adjustment | Yes |
| Delay charging adjustment | Yes |
| Ethernet/WIFI/4G/Bluetooth | No |
| Working environment | |
| Protection degree | IP 67 |
| Operation temperature | -30℃ - 60℃ |
| Relative humidity | ≤95%RH |
| Operating elevation limit | ≤2000m |
| Cooling | Natural air cooling |
| Standby power consumption | <0.5W |
| Mechanical parameters | |

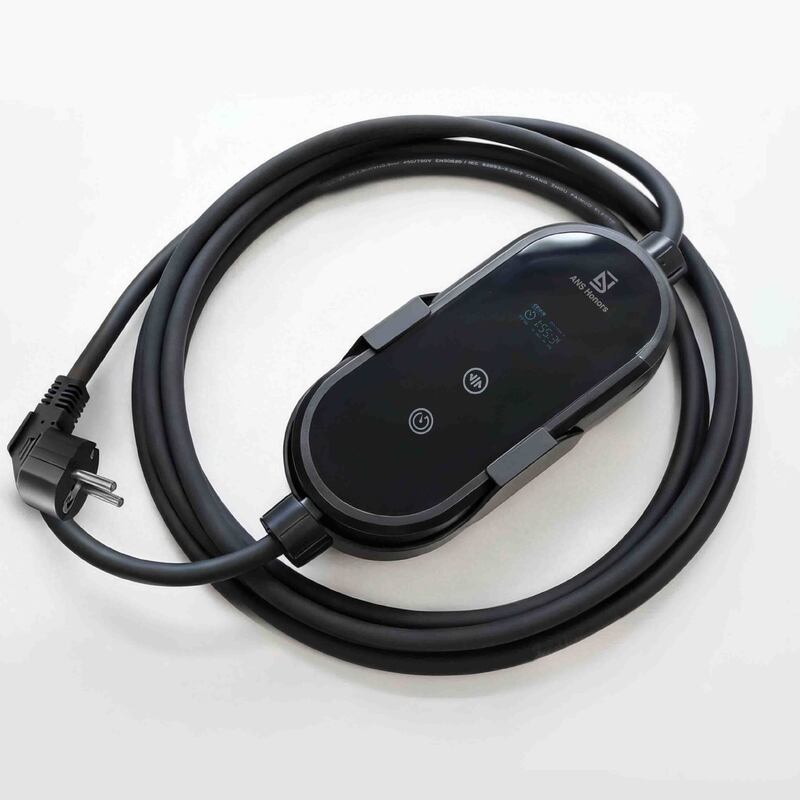

| Charging cable | 5m (Standard configuration) |
| Control box | H×W×D = 200mm×90mm×52mm |
| Weight | ≤2.9kg |
| Colour&Material | Black;Tempered Glass,PC |
How to install
Step 1: Put the wall bracket in a proper position on the wall, mark theposition of the top two screw holes on the wall using a pencil.
Step 2: Put down the wall bracket and drill the holes just marked. insertthe expansion plugs and fix the wall bracket to the wall usingself-tapping
screws.
Step 3: First insert the device into the upper mounting hole of the wallbracket. Then into the round hole of the bottom bracket andfix it on the wall bracket using combination screws.

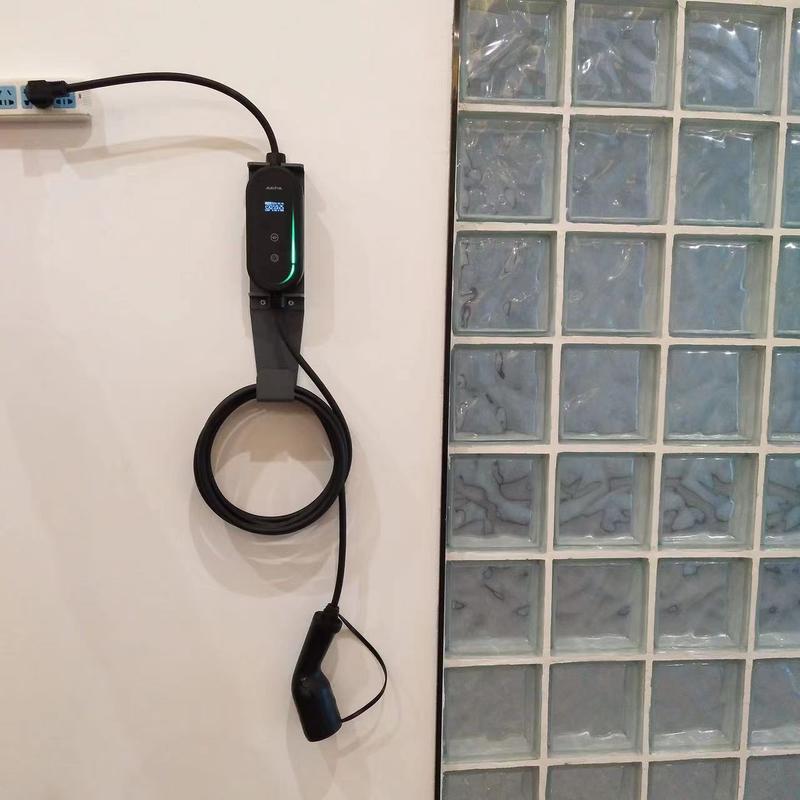

Installation cases
Packaging
