케이블을 고발하는 유형 2 EV
>

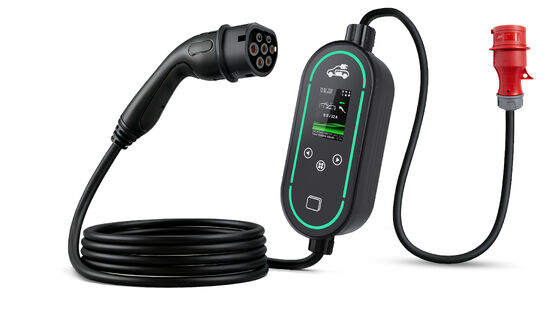

AC110V/230V 3 Phase Portable EV Charger with CE Certification and WiFi APP Control

AC110V/230V 3 Phase Portable EV Charger with CE Certification and WiFi APP Control

브랜드 이름: ANS
모델 번호: 11kw
MOQ: 1
포장에 대한 세부 사항: 상자
지불 조건: L/C, D/P, T/T, Western Union
자세한 정보
원래 장소:
중국
인증:
CE
주요 기능:
2.4인치 LCE 스크린
와이파이:
2.5GHz
보호:
IP67
케이블 색상:
검거나 특화
공급 능력:
10000PCS/월
강조하다:

AC110V/230V Portable EV Charger

,

3 Phase EV Charging Cable

,

CE Certification Electric Vehicle Charger

제품 설명
Type2 AC110V/230V Portable EV Charger with WiFi APP Control

This high-performance 11kW portable EV charger delivers reliable charging with advanced features for home and on-the-go use, featuring WiFi/Bluetooth control and IP67 protection rating.

Key Features
  • Date and time tracking with charging history (up to 30 records)
  • Multi-national language selection
  • Adjustable current from 6A to 16A in 1A increments
  • Scheduled charging appointments (weekly/time-based)
  • Auto screen/LED shutoff based on timer settings
  • APP remote control via Bluetooth and WiFi (2.4GHz)
  • Multiple charging modes (RFID/APP/Password/Plug and Play)
  • Advanced load control with adjustable phase number and current (ModBus TCP)
Technical Specifications
Product Model EVB03B
Input/Output Voltage AC 110V/230V
Input Frequency 50/60Hz
Max. Output Power 1-Phase up to 3.7kW (@230V 16A)
Max. Output Current 16A for 1-Phase
Standard IEC 62752:2016/COR1:2019
Certification CE, RoHS
Protection Features
  • Over-voltage protection
  • Under-voltage protection
  • Overload protection
  • Short circuit protection
  • Leakage protection
  • Over-temperature protection
  • Lightning protection
Functionality & Accessories
  • LED indicators
  • 2.4-inch LED screen
  • Type B RCD (AC 30mA+DC 6mA)
  • Current adjustment
  • Relay adhesion detection
  • RFID management
  • WiFi/Bluetooth (WiFi 2.4GHz)
Environmental Specifications
  • IP67 protection rating
  • Operating temperature: -30℃ to 55℃
  • Relative humidity ≤95%RH
  • Operating elevation limit ≤2000m
  • Natural air cooling
  • Standby power consumption <3W
Physical Parameters
  • 5m charging cable (standard)
  • Control box dimensions: 200*90*52mm (H*W*D)
  • Weight ≤3kg
  • Black color (customizable)
  • PC material (flame retardant, UV resistant)
Product Images
AC110V/230V 3 Phase Portable EV Charger with CE Certification and WiFi APP Control 0
AC110V/230V 3 Phase Portable EV Charger with CE Certification and WiFi APP Control 1
AC110V/230V 3 Phase Portable EV Charger with CE Certification and WiFi APP Control 2
AC110V/230V 3 Phase Portable EV Charger with CE Certification and WiFi APP Control 3
Additional Information
Brand Name ANS
Model Number EVB03B
MOQ 1
Packaging Details 15.7*15*3.15(in)
Payment Terms L/C, T/T, Western Union
Supply Ability 100,000 PCS/month
Product Highlights
  • 3kW Portable EV Charger
  • AC110V/230V Electric Vehicle Charger
  • WiFi 2.4GHz EV Charging Cable

Detailed Product Information
